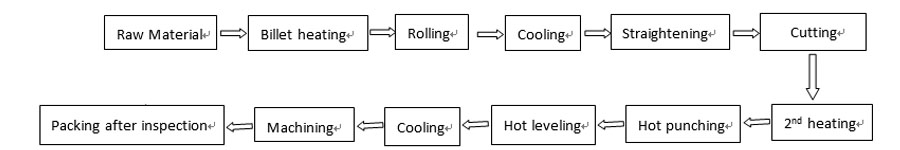

Wechat: +8615901613885Production process diagram
The main equipment of the production line includes heating furnace, rolling mill, and press machine, etc.
Raw material Purchase

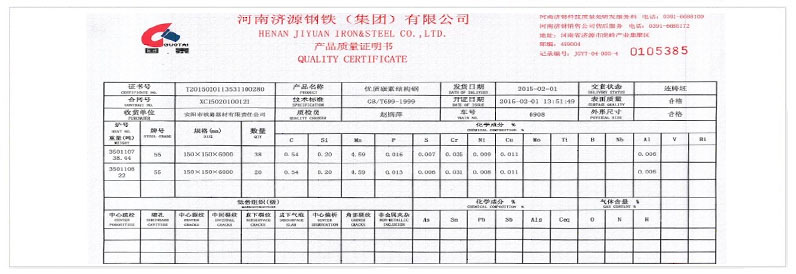

Raw material purchase Our supplier of raw material is HENAN JIYUAN IRON & STEEL CO., LTD. For example, here below is the Quality Certificate of raw material 55# steel purchased in February, 2015.
For example, here below is the Quality Certificate of raw material 55# steel purchased in October, 2016.
Raw material Purchase

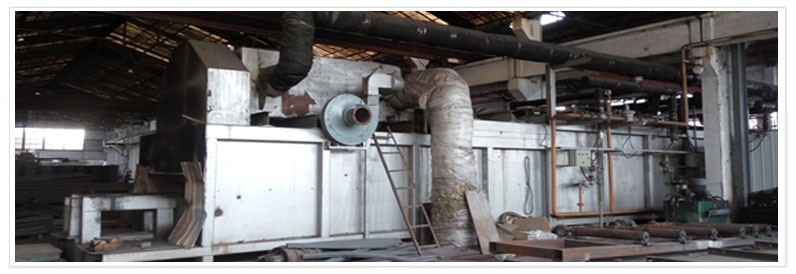

Heating
Our company employs the most advance walking beam natural gas heating furnace to heat billet steels. The temperature inside the furnace reaches to 1150-1250℃. Infrared Thermometer is used to automatically control and adjust the temperature. After heating, the billet steels are pushed out by pushing device.
Natural gas heating furnace

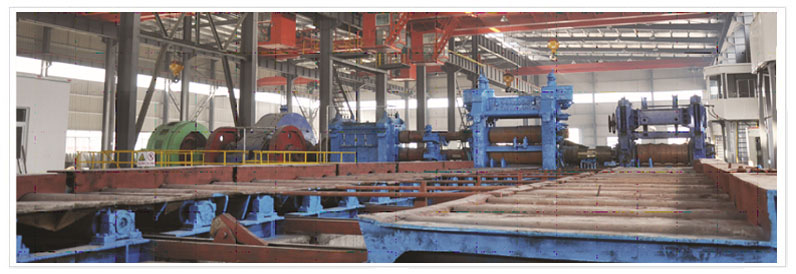

Rolling
Our company possess two Φ650 rolling production line. Annual production capacity of is 20,000 tons. The main standards our products comply with are US, RU and AU standards.
Rolling mill production line

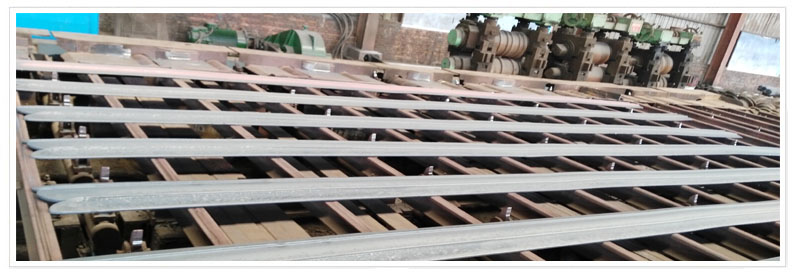

Cooling and straightening
The rolled parts are cooled to below 80℃ by the cooling machine, then straightened by the straightening machine.
Cooling and straightening
Cutting
After straightening, then cutting by cutting machine to certain required lengths.
Cutting

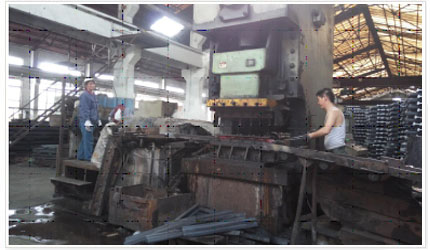

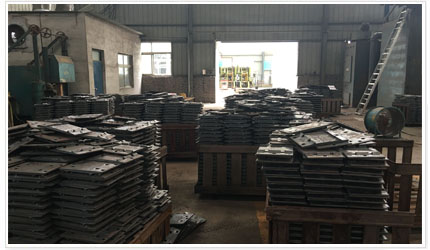

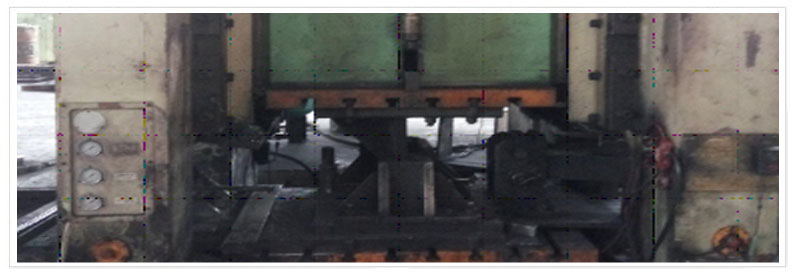

Hot punching and leveling.
Punching and leveling by press machine.
Hot punching and levelingHot punching and leveling

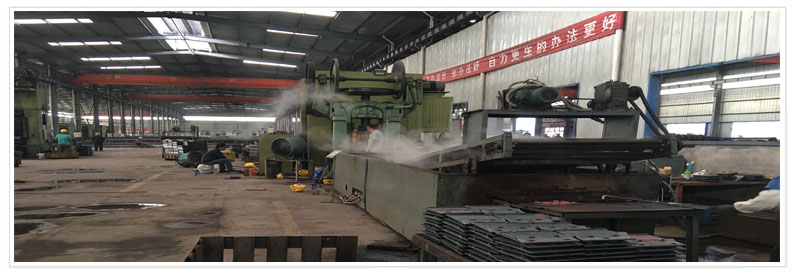

2nd heating
The purpose of 2nd heating is to improve the mechanical properties of base plates by quenching. The temperature after 2nd heating reaches to about 900℃.
2nd heating

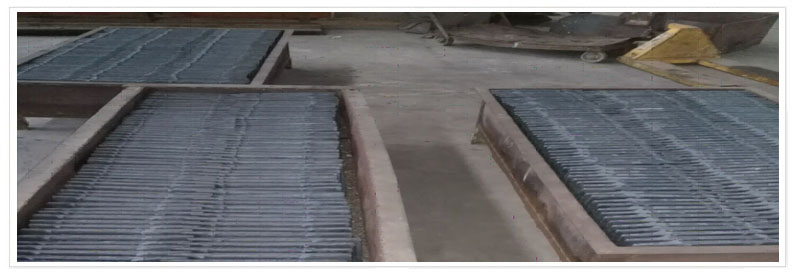

Cooling
When the base plates are cooled to room temperature, they will be packaged by workers and put into storage. Cooling water tank will ensure the temperature of the cooling process.
Cooling
Inspection
We are equipped with full set of inspection facilities. We take 1 sample from 1000 rolled base plates, make test bars and test the mechanical properties.
Inspection

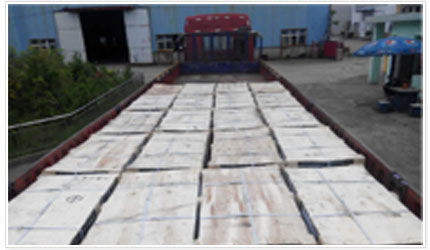

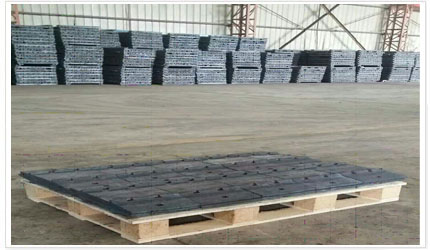

Packing and shipment
Our inspection equipment is complete. We make test bars and do mechanical properties test for e very 1,000 fishplates.
Packing and shipmentPacking and shipment

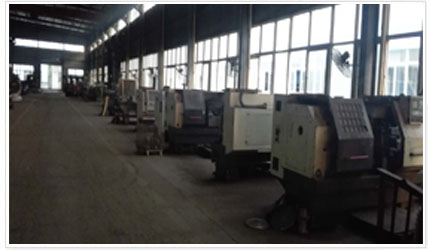

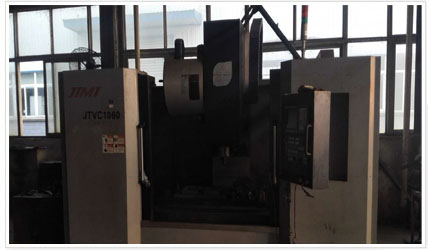

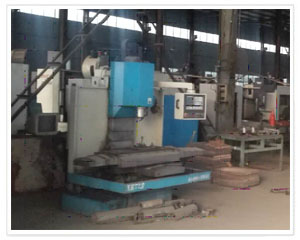

Our machining equipment
Our machining equipmentOur machining equipment

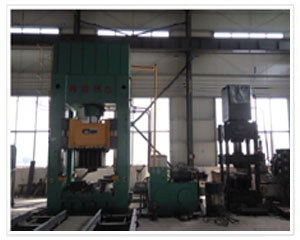

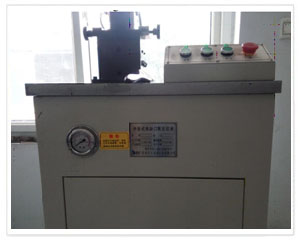

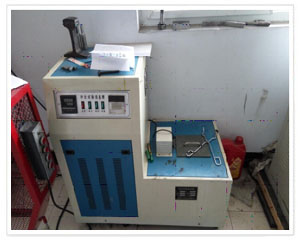

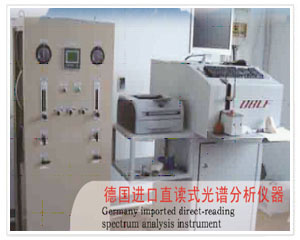

Our testing equipment
Our testing equipmentOur testing equipmentOur testing equipment
Our testing equipmentOur testing equipment
